MCS 2WR
The MCS 2W damper is a double-adjustable damper with external reservoirs which allow for adjustment of the gas pressure in the damper. Both compression and rebound damping forces are independently adjustable with the compression adjuster located on the reservoir head and the rebound adjuster located on the shaft-end.
Compression damping forces are controlled by a large blow-off valve located directly on the reservoir main piston for the most precise and accurate damping control, and not a needle valve with a smaller effective adjustment range before the needle is too far out of the orifice to influence flow.
Rebound damping forces are controlled through orifices located at the main piston assembly in the damper body and allow for precise hydraulic control of damper oil through the main piston. Utilizing orifices introduces the ability to have a wide operating range, avoiding pesky re-valves, consistency in damping adjustment per click, and virtually eliminates fatigue with usage.
Gas pressure can be adjusted through a schrader valve located at the end of the remote reservoir, allowing you to increase or decrease the overall support to the vehicle. Reservoir pressure can be adjusted between 100 – 275 PSI to help support the platform in fast cornering that generate large loads or allow more weight transfer to generate more traction in low grip scenarios.
These dampers are packed with technical features but with an elegantly clean execution. The monotube design is very stable with more oil capacity and better heat dissipation than twin tube dampers. Large shafts give extremely high, low-friction side-load support unmatched by shocks inverted and converted for strut applications. The large main piston gives quick, accurate damper response and the divider piston separates oil and gas, eliminating cavitation which often causes noise and sloppiness.
Remote reservoirs give superior fluid temperature control and are available (or standard depending on application) with Staubli dry-breaks for easy installation.
Adjustability
The MCS 1WNR damper is a single-adjustable damper with an adjustment range of 18 settings.
Application specific valving covers a wide range of spring rates and eliminates the need to constantly revalve every time you want to increase or decrease your spring rate. MCS has engineered its adjustment mechanisms so each click can be felt, but never feels like you’ve gone too far.

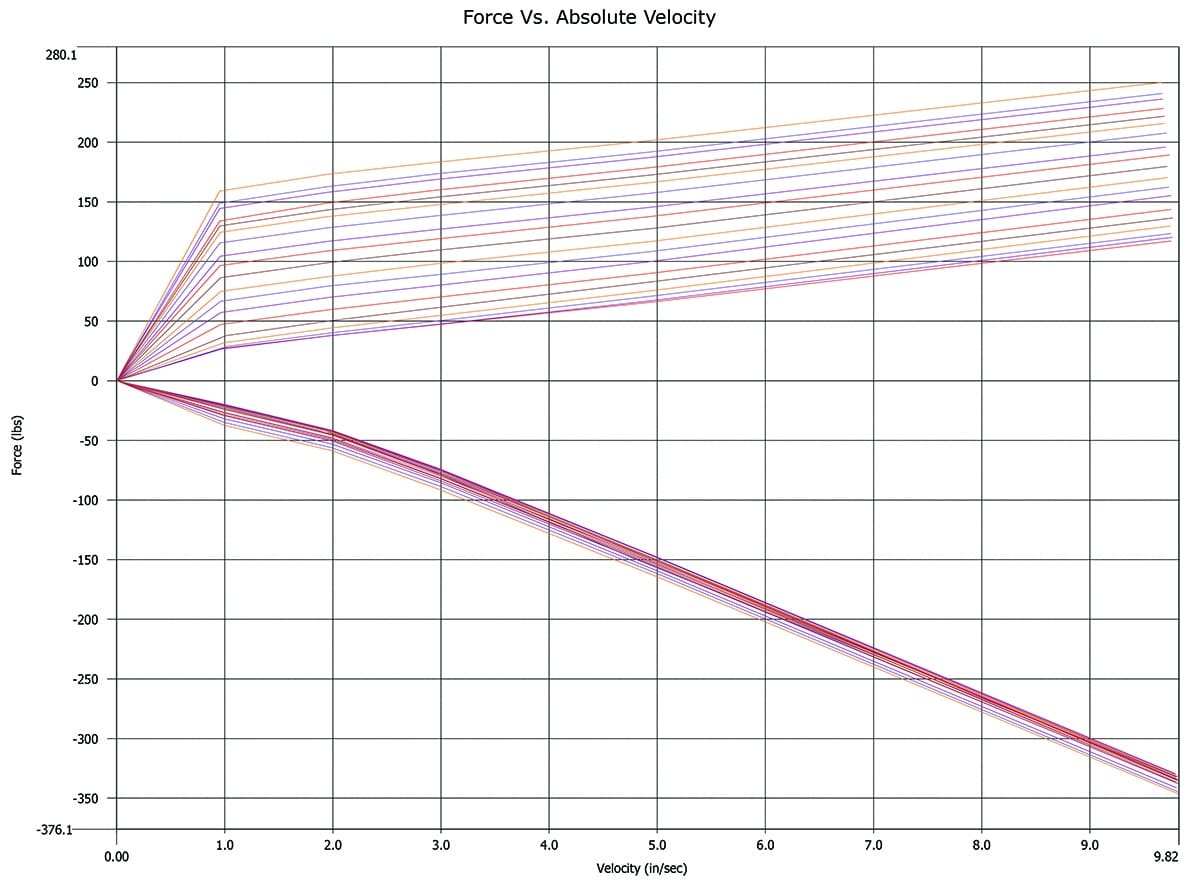

18 Clicks of Compression Adjustment
The MCS 2W damper is a double-adjustable damper with an adjustment range of 18 clicks of compression and 18 settings of rebound. Application specific valving covers a wide range of spring rates and eliminates the need to constantly revalve every time you want to increase or decrease your spring rate. MCS has engineered its adjustment mechanisms so each click can be felt, but never feels like you’ve gone too far. 2W dampers are built standard with a linear piston and a digressive piston option is available.

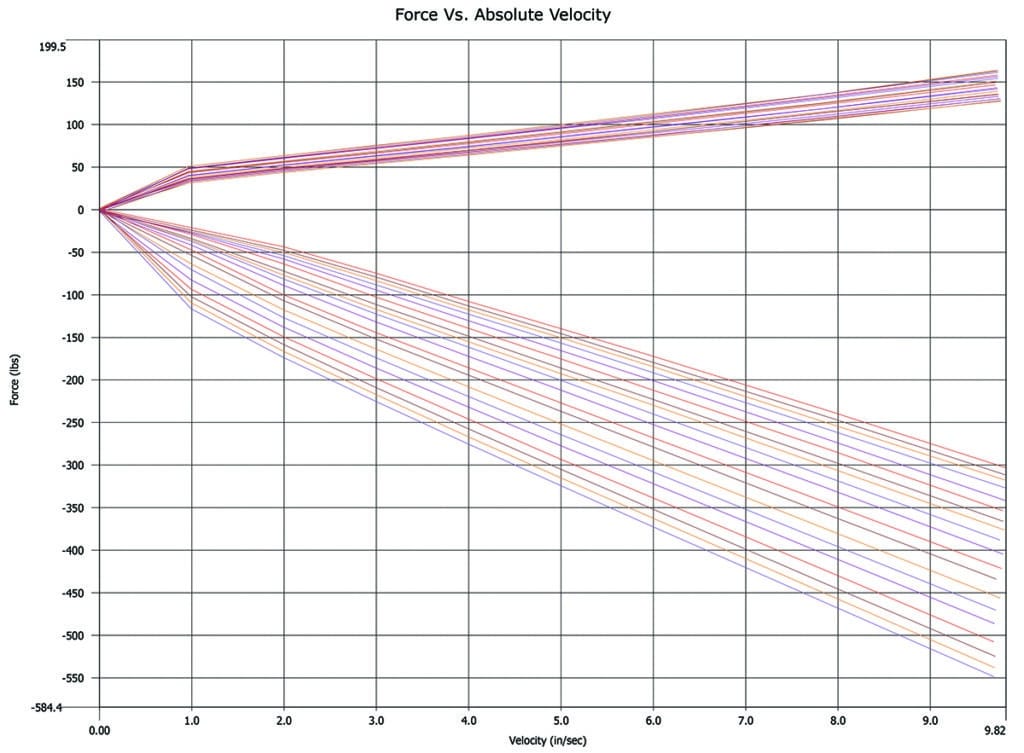

18 Clicks of Rebound Adjustment
With 18 clicks of rebound adjustment, the user can easily introduce more spring control or change the balance of the car.
Gas Pressure Adjustment
Schrader valves are fitted on the ends of the reservoirs. This introduces a valuable tuning tool – the ability to increase or decrease the nitrogen pressure in your damper, allowing you to increase or decrease the overall support to the vehicle. Reservoir pressure can be adjusted between 100 – 275 PSI to help support the platform in fast cornering that generates large loads or to allow more weight transfer to generate more traction in low grip scenarios.
MCS 2W
Rebound Adjustment Mechanism
Proprietary adjustment mechanism to manipulate rebound damping forces.
Main Piston Assembly
Generates overall valving range. Valving can be manipulated by changing the non-preloaded shim stack configuration on the compression and rebound sides of the piston.
Support Piston
Provides additional lateral support on piston end of shaft assembly.
Shaft Guide
Creates additional lateral support on shaft-end side of shaft assembly.
Shaft
Also known as piston rod. Responsible for displacing fluid in the damper body to be controlled by piston assembly and adjustment mechanism. We utilize 22mm diameter shafts for strut applications and 16mm diameter for shock applications on the 1WNR damper system.
Rebound Adjuster Knob
Connected to the internal rebound adjustment mechanism and allows user to change rebound damping forces easily.
Compression Adjuster Knob
Connected to the internal compression adjustment mechanism. Allows user to change compression damping forces easily.
Compression Main Piston Assembly
Contains proprietary internal adjustment mechanism for compression damping forces.
Dividing Piston
Separates the gas cavity from the oil cavity.
Schrader Valve
Make gas pressure changes easily with a shock tool.
